PETSc Time-stepping Solver – PID Control and Steam Example#
This example provides an overview of the PETSc time-stepping solver utilities in IDAES, which can be used to solve systems of differential algebraic equations (DAEs). PETSc is a solver suite developed primarily by Argonne National Lab (https://petsc.org/release/). IDAES provides a wrapper for PETSc (https://github.com/IDAES/idaes-ext/tree/main/petsc) that uses the AMPL solver interface (https://ampl.com/resources/learn-more/hooking-your-solver-to-ampl/) and utility functions that allow Pyomo and Pyomo.DAE (https://pyomo.readthedocs.io/en/stable/modeling_extensions/dae.html) problems to be solved using PETSc.
This demonstration uses the IDAES PID controller model and a flowsheet arranged like so:
->--|><|------[]------|><|-->-
valve_1 tank valve_2

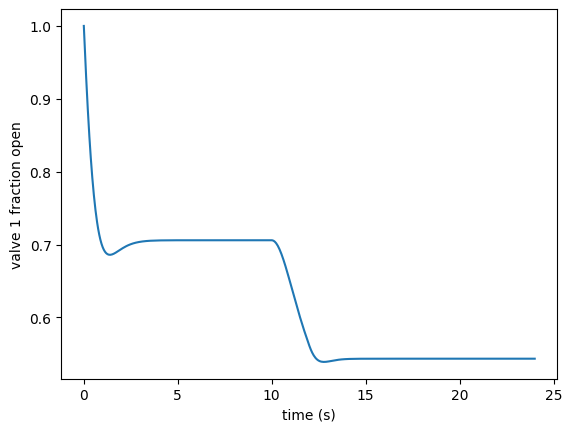

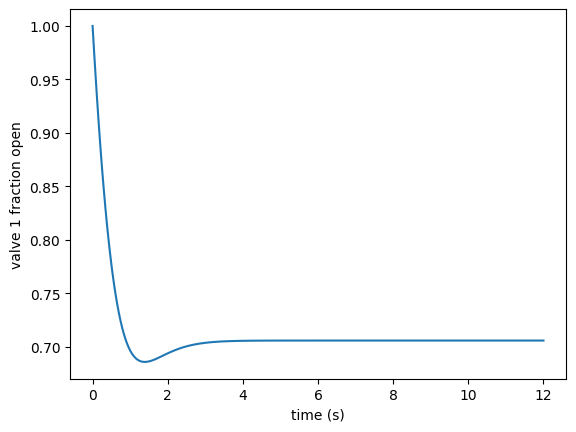

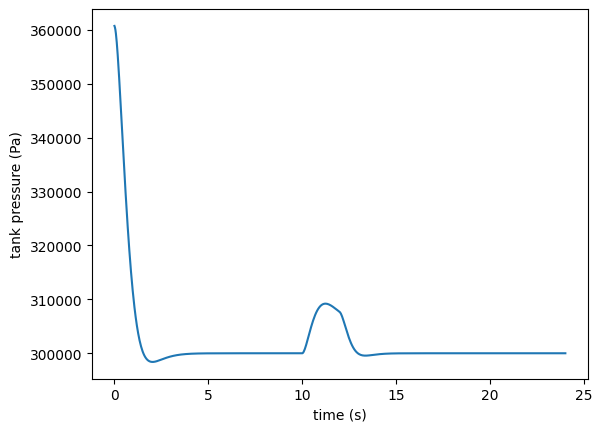

where the tank pressure is controlled by the opening of valve_1.
Prerequisites#
The PETSc solver is an extra download for IDAES, which can be downloaded using the command idaes get-extensions --extra petsc, if it is not installed already. See the IDAES solver documentation for more information (https://idaes-pse.readthedocs.io/en/stable/reference_guides/core/solvers.html).
You may want to review the “PETSc Time-stepping Solver – Chemical Akzo Nobel Example” notebook first.
Imports#
import numpy as np
import matplotlib.pyplot as plt
import pyomo.environ as pyo
import pyomo.dae as pyodae
import idaes.core.solvers.petsc as petsc # petsc utilities module
import idaes_examples.mod.dae.petsc.pid_steam_tank as pid
from idaes.core.util.math import smooth_max, smooth_min
Model Set Up#
# to see the model code uncomment the line below
# ??pid
m = pid.create_model(
time_set=[0, 12],
nfe=1,
calc_integ=True,
)
2023-04-04 10:06:20 [INFO] idaes.init.fs.valve_1: Initialization Complete: optimal - Optimal Solution Found
2023-04-04 10:06:20 [INFO] idaes.init.fs.tank.control_volume: Initialization Complete
2023-04-04 10:06:20 [INFO] idaes.init.fs.tank: Initialization Complete: optimal - Optimal Solution Found
2023-04-04 10:06:20 [INFO] idaes.init.fs.valve_2: Initialization Complete: optimal - Optimal Solution Found
Solve#
result = petsc.petsc_dae_by_time_element(
m,
time=m.fs.time,
ts_options={
"--ts_type": "beuler",
"--ts_dt": 0.1,
"--ts_monitor": "", # set initial step to 0.1
"--ts_save_trajectory": 1,
},
)
tj = result.trajectory # trajectroy data
res = result.results # solver status list
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Called fg_read, err: 0 (0 is good)
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: ---------------------------------------------------
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: DAE: 0
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Reading nl file: /var/folders/xf/4r1nvwm50_d1069gf048n6p80000gn/T/tmpxpj951ob.pyomo.nl
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of constraints: 28
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of nonlinear constraints: 14
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of linear constraints: 14
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of inequalities: 0
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of variables: 28
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of integers: 0
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of binary: 0
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of objectives: 0 (Ignoring)
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of non-zeros in Jacobian: 83
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of degrees of freedom: 0
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: ---------------------------------------------------
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: 0 SNES Function norm 5.783088779321e+05
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: 1 SNES Function norm 4.315325974705e+05
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: 2 SNES Function norm 7.639793381288e+04
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: 3 SNES Function norm 5.928557930246e+03
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: 4 SNES Function norm 5.008361736228e+01
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: 5 SNES Function norm 3.698195211736e-03
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: 6 SNES Function norm 3.726165878373e-09
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: SNESConvergedReason = SNES_CONVERGED_FNORM_RELATIVE, in 6 iterations
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: SNES_CONVERGED_FNORM_RELATIVE
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Called fg_read, err: 0 (0 is good)
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: ---------------------------------------------------
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: DAE: 1
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Reading nl file: /var/folders/xf/4r1nvwm50_d1069gf048n6p80000gn/T/tmpax6j4hge.pyomo.nl
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of constraints: 29
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of nonlinear constraints: 15
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of linear constraints: 14
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of inequalities: 0
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of variables: 34
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of integers: 0
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of binary: 0
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of objectives: 0 (Ignoring)
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of non-zeros in Jacobian: 91
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Explicit time variable: 0
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of derivatives: 5
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of differential vars: 5
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of algebraic vars: 24
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of state vars: 29
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: Number of degrees of freedom: 0
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: ---------------------------------------------------
2023-04-04 10:06:20 [INFO] idaes.solve.petsc-dae: 0 TS dt 0.1 time 0.
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 1 TS dt 0.025 time 0.025
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 2 TS dt 0.0154252 time 0.0381739
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 3 TS dt 0.0133373 time 0.0510085
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 4 TS dt 0.0136013 time 0.0643458
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 5 TS dt 0.0141735 time 0.0779471
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 6 TS dt 0.0146392 time 0.0921205
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 7 TS dt 0.0152517 time 0.10676
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 8 TS dt 0.0158389 time 0.122011
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 9 TS dt 0.0165162 time 0.13785
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 10 TS dt 0.0172093 time 0.154367
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 11 TS dt 0.0179712 time 0.171576
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 12 TS dt 0.0187679 time 0.189547
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 13 TS dt 0.0196222 time 0.208315
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 14 TS dt 0.020514 time 0.227937
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 15 TS dt 0.0214472 time 0.248451
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 16 TS dt 0.022401 time 0.269898
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 17 TS dt 0.0233619 time 0.292299
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 18 TS dt 0.0243005 time 0.315661
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 19 TS dt 0.0251894 time 0.339962
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 20 TS dt 0.0259944 time 0.365151
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 21 TS dt 0.0266898 time 0.391146
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 22 TS dt 0.0272563 time 0.417835
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 23 TS dt 0.0276902 time 0.445092
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 24 TS dt 0.0279997 time 0.472782
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 25 TS dt 0.0282038 time 0.500782
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 26 TS dt 0.028326 time 0.528985
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 27 TS dt 0.0283913 time 0.557311
2023-04-04 10:06:22 [INFO] idaes.solve.petsc-dae: 28 TS dt 0.0284218 time 0.585703
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 29 TS dt 0.0284362 time 0.614124
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 30 TS dt 0.0284488 time 0.642561
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 31 TS dt 0.0284703 time 0.671009
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 32 TS dt 0.0285087 time 0.69948
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 33 TS dt 0.0285693 time 0.727988
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 34 TS dt 0.0286562 time 0.756558
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 35 TS dt 0.0287722 time 0.785214
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 36 TS dt 0.0289195 time 0.813986
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 37 TS dt 0.0291001 time 0.842906
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 38 TS dt 0.0293154 time 0.872006
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 39 TS dt 0.0295672 time 0.901321
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 40 TS dt 0.0298571 time 0.930888
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 41 TS dt 0.0301872 time 0.960745
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 42 TS dt 0.0305596 time 0.990933
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 43 TS dt 0.0309769 time 1.02149
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 44 TS dt 0.031442 time 1.05247
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 45 TS dt 0.0319585 time 1.08391
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 46 TS dt 0.0325305 time 1.11587
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 47 TS dt 0.0331626 time 1.1484
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 48 TS dt 0.0338606 time 1.18156
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 49 TS dt 0.0346311 time 1.21542
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 50 TS dt 0.0354817 time 1.25005
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 51 TS dt 0.0364218 time 1.28554
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 52 TS dt 0.0374622 time 1.32196
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 53 TS dt 0.0386159 time 1.35942
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 54 TS dt 0.0398987 time 1.39804
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 55 TS dt 0.0413295 time 1.43793
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 56 TS dt 0.0429313 time 1.47926
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 57 TS dt 0.0447325 time 1.5222
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 58 TS dt 0.0467682 time 1.56693
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 59 TS dt 0.0490823 time 1.6137
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 60 TS dt 0.0517305 time 1.66278
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 61 TS dt 0.0547839 time 1.71451
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 62 TS dt 0.0583343 time 1.76929
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 63 TS dt 0.0625012 time 1.82763
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 64 TS dt 0.0674414 time 1.89013
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 65 TS dt 0.0733598 time 1.95757
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 66 TS dt 0.0805186 time 2.03093
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 67 TS dt 0.0892348 time 2.11145
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 68 TS dt 0.0998323 time 2.20068
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 69 TS dt 0.112487 time 2.30052
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 70 TS dt 0.12691 time 2.413
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 71 TS dt 0.142117 time 2.53991
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 72 TS dt 0.157007 time 2.68203
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 73 TS dt 0.171623 time 2.83904
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 74 TS dt 0.187368 time 3.01066
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 75 TS dt 0.206382 time 3.19803
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 76 TS dt 0.231364 time 3.40441
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 77 TS dt 0.266076 time 3.63577
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 78 TS dt 0.316701 time 3.90185
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 79 TS dt 0.394851 time 4.21855
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 80 TS dt 0.52517 time 4.6134
2023-04-04 10:06:23 [INFO] idaes.solve.petsc-dae: 81 TS dt 0.767754 time 5.13857
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: 82 TS dt 1.29835 time 5.90633
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: 83 TS dt 2.39766 time 7.20468
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: 84 TS dt 2.39766 time 9.60234
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: 85 TS dt 23.9766 time 12.
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: TSConvergedReason = TS_CONVERGED_TIME
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: TS_CONVERGED_TIME
Plot Trajectory#
At the initial conditions the valve is fully open. At t=0, the controller is activated and the controller adjusts the opening of valve 1 to keep the tank pressure at the setpoint of 300 kPa.
a = plt.plot(tj.time, tj.get_vec(m.fs.valve_1.valve_opening[12]))
a = plt.ylabel("valve 1 fraction open")
a = plt.xlabel("time (s)")
a = plt.plot(tj.time, tj.get_vec(m.fs.tank.control_volume.properties_out[12].pressure))
a = plt.ylabel("tank pressure (Pa)")
a = plt.xlabel("time (s)")
Model a ramp in inlet pressure#
Next we show how to add an explicit time variable and ramp the inlet pressure from 500 kPa to 600 kPa between 10 and 12 seconds.
# Create a new copy of the model that runs to 24 seconds, and add a constraint.
m = pid.create_model(
time_set=[0, 24],
nfe=1,
calc_integ=True,
)
# time_var will be an explicit time variable we can use in constraints.
m.fs.time_var = pyo.Var(m.fs.time)
# We'll add a constraint to calculate the inlet pressure based on time,
# so we need to unfix pressure.
m.fs.valve_1.control_volume.properties_in[0].pressure.unfix()
m.fs.valve_1.control_volume.properties_in[24].pressure.unfix()
# The solver will directly set the time variable for the DAE solve, but
# solving the initial conditions is just a system of nonlinear equations,
# so we need to fix the initial time.
m.fs.time_var[0].fix(m.fs.time.first())
# We could break up the time domain and solve this in pieces, but creative use
# of min and max will let us create the ramping function we want.

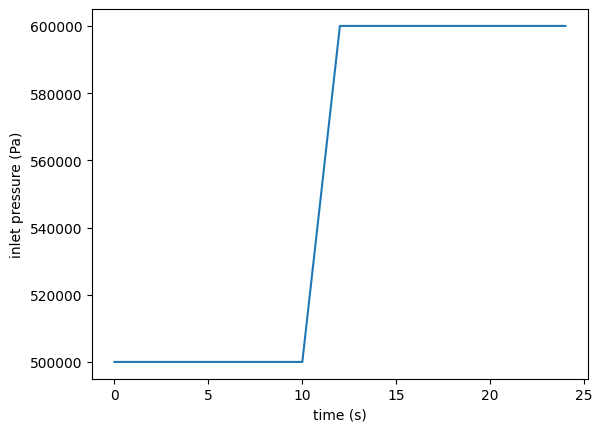

# From 10s to 12s ramp inlet pressure from 500,000 Pa to 600,000 Pa
@m.fs.Constraint(m.fs.time)
def inlet_pressure_eqn(b, t):
return b.valve_1.control_volume.properties_in[t].pressure == smooth_min(
600000, smooth_max(500000, 50000 * (b.time_var[t] - 10) + 500000)
)
2023-04-04 10:06:24 [INFO] idaes.init.fs.valve_1: Initialization Complete: optimal - Optimal Solution Found
2023-04-04 10:06:24 [INFO] idaes.init.fs.tank.control_volume: Initialization Complete
2023-04-04 10:06:24 [INFO] idaes.init.fs.tank: Initialization Complete: optimal - Optimal Solution Found
2023-04-04 10:06:24 [INFO] idaes.init.fs.valve_2: Initialization Complete: optimal - Optimal Solution Found
# Solve the new problem. Notice the new argument specifying the explicit time variable.
result = petsc.petsc_dae_by_time_element(
m,
time=m.fs.time,
timevar=m.fs.time_var,
ts_options={
"--ts_type": "beuler",
"--ts_dt": 0.1,
"--ts_monitor": "", # set initial step to 0.1
"--ts_save_trajectory": 1,
},
)
tj = result.trajectory # trajectroy data
res = result.results # solver status list
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Called fg_read, err: 0 (0 is good)
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: ---------------------------------------------------
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: DAE: 0
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Reading nl file: /var/folders/xf/4r1nvwm50_d1069gf048n6p80000gn/T/tmpw3agr58t.pyomo.nl
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of constraints: 29
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of nonlinear constraints: 15
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of linear constraints: 14
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of inequalities: 0
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of variables: 29
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of integers: 0
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of binary: 0
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of objectives: 0 (Ignoring)
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of non-zeros in Jacobian: 89
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of degrees of freedom: 0
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: ---------------------------------------------------
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: 0 SNES Function norm 5.783088779321e+05
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: 1 SNES Function norm 4.315325974705e+05
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: 2 SNES Function norm 7.639793381288e+04
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: 3 SNES Function norm 5.928557930246e+03
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: 4 SNES Function norm 5.008361736230e+01
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: 5 SNES Function norm 3.698195222029e-03
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: 6 SNES Function norm 3.725635339799e-09
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: SNESConvergedReason = SNES_CONVERGED_FNORM_RELATIVE, in 6 iterations
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: SNES_CONVERGED_FNORM_RELATIVE
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Called fg_read, err: 0 (0 is good)
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: ---------------------------------------------------
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: DAE: 1
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Reading nl file: /var/folders/xf/4r1nvwm50_d1069gf048n6p80000gn/T/tmp_k83s91q.pyomo.nl
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of constraints: 30
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of nonlinear constraints: 17
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of linear constraints: 13
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of inequalities: 0
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of variables: 36
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of integers: 0
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of binary: 0
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of objectives: 0 (Ignoring)
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of non-zeros in Jacobian: 98
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Explicit time variable: 1
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of derivatives: 5
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of differential vars: 5
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of algebraic vars: 25
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of state vars: 30
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: Number of degrees of freedom: 0
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: ---------------------------------------------------
2023-04-04 10:06:24 [INFO] idaes.solve.petsc-dae: 0 TS dt 0.1 time 0.
2023-04-04 10:06:26 [INFO] idaes.solve.petsc-dae: 1 TS dt 0.025 time 0.025
2023-04-04 10:06:26 [INFO] idaes.solve.petsc-dae: 2 TS dt 0.0155174 time 0.0382861
2023-04-04 10:06:26 [INFO] idaes.solve.petsc-dae: 3 TS dt 0.0134552 time 0.0512442
2023-04-04 10:06:26 [INFO] idaes.solve.petsc-dae: 4 TS dt 0.0137323 time 0.0646993
2023-04-04 10:06:26 [INFO] idaes.solve.petsc-dae: 5 TS dt 0.0143091 time 0.0784316
2023-04-04 10:06:26 [INFO] idaes.solve.petsc-dae: 6 TS dt 0.0147875 time 0.0927408
2023-04-04 10:06:26 [INFO] idaes.solve.petsc-dae: 7 TS dt 0.0154095 time 0.107528
2023-04-04 10:06:26 [INFO] idaes.solve.petsc-dae: 8 TS dt 0.0160103 time 0.122938
2023-04-04 10:06:26 [INFO] idaes.solve.petsc-dae: 9 TS dt 0.0167004 time 0.138948
2023-04-04 10:06:26 [INFO] idaes.solve.petsc-dae: 10 TS dt 0.017409 time 0.155648
2023-04-04 10:06:26 [INFO] idaes.solve.petsc-dae: 11 TS dt 0.0181867 time 0.173057
2023-04-04 10:06:26 [INFO] idaes.solve.petsc-dae: 12 TS dt 0.0190011 time 0.191244
2023-04-04 10:06:26 [INFO] idaes.solve.petsc-dae: 13 TS dt 0.0198735 time 0.210245
2023-04-04 10:06:26 [INFO] idaes.solve.petsc-dae: 14 TS dt 0.0207844 time 0.230119
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 15 TS dt 0.0217362 time 0.250903
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 16 TS dt 0.0227074 time 0.272639
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 17 TS dt 0.023683 time 0.295347
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 18 TS dt 0.0246322 time 0.31903
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 19 TS dt 0.0255259 time 0.343662
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 20 TS dt 0.0263295 time 0.369188
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 21 TS dt 0.0270172 time 0.395517
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 22 TS dt 0.0275714 time 0.422535
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 23 TS dt 0.0279905 time 0.450106
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 24 TS dt 0.0282849 time 0.478096
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 25 TS dt 0.0284755 time 0.506381
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 26 TS dt 0.0285871 time 0.534857
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 27 TS dt 0.0286451 time 0.563444
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 28 TS dt 0.0286717 time 0.592089
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 29 TS dt 0.0286852 time 0.620761
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 30 TS dt 0.0286996 time 0.649446
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 31 TS dt 0.0287253 time 0.678146
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 32 TS dt 0.0287697 time 0.706871
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 33 TS dt 0.028838 time 0.735641
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 34 TS dt 0.0289341 time 0.764479
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 35 TS dt 0.0290607 time 0.793413
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 36 TS dt 0.02922 time 0.822473
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 37 TS dt 0.0294138 time 0.851693
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 38 TS dt 0.0296438 time 0.881107
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 39 TS dt 0.0299117 time 0.910751
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 40 TS dt 0.0302194 time 0.940663
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 41 TS dt 0.0305688 time 0.970882
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 42 TS dt 0.0309625 time 1.00145
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 43 TS dt 0.0314033 time 1.03241
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 44 TS dt 0.0318942 time 1.06382
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 45 TS dt 0.0324393 time 1.09571
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 46 TS dt 0.0330429 time 1.12815
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 47 TS dt 0.0337102 time 1.16119
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 48 TS dt 0.0344475 time 1.1949
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 49 TS dt 0.035262 time 1.22935
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 50 TS dt 0.0361623 time 1.26461
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 51 TS dt 0.0371585 time 1.30078
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 52 TS dt 0.0382628 time 1.33793
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 53 TS dt 0.0394897 time 1.3762
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 54 TS dt 0.0408567 time 1.41569
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 55 TS dt 0.0423852 time 1.45654
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 56 TS dt 0.044101 time 1.49893
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 57 TS dt 0.0460366 time 1.54303
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 58 TS dt 0.0482319 time 1.58907
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 59 TS dt 0.0507375 time 1.6373
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 60 TS dt 0.0536178 time 1.68804
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 61 TS dt 0.0569557 time 1.74165
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 62 TS dt 0.0608589 time 1.79861
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 63 TS dt 0.0654684 time 1.85947
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 64 TS dt 0.0709695 time 1.92494
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 65 TS dt 0.0776028 time 1.99591
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 66 TS dt 0.0856702 time 2.07351
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 67 TS dt 0.0955136 time 2.15918
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 68 TS dt 0.107416 time 2.25469
2023-04-04 10:06:27 [INFO] idaes.solve.petsc-dae: 69 TS dt 0.121348 time 2.36211
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 70 TS dt 0.136618 time 2.48346
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 71 TS dt 0.151998 time 2.62007
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 72 TS dt 0.166896 time 2.77207
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 73 TS dt 0.182219 time 2.93897
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 74 TS dt 0.199913 time 3.12119
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 75 TS dt 0.222499 time 3.3211
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 76 TS dt 0.253299 time 3.5436
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 77 TS dt 0.297451 time 3.7969
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 78 TS dt 0.364163 time 4.09435
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 79 TS dt 0.47213 time 4.45851
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 80 TS dt 0.664605 time 4.93064
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 81 TS dt 1.05946 time 5.59525
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 82 TS dt 2.05856 time 6.65471
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 83 TS dt 5.55492 time 8.71327
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 84 TS dt 5.55492 time 9.26876
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 85 TS dt 5.55492 time 9.82425
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 86 TS dt 0.555492 time 9.8798
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 87 TS dt 0.555492 time 9.93535
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 88 TS dt 0.555492 time 9.9909
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 89 TS dt 0.0652228 time 9.99742
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 90 TS dt 0.0256153 time 9.99999
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 91 TS dt 0.00220336 time 10.0016
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 92 TS dt 0.0220336 time 10.0038
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 93 TS dt 0.0198785 time 10.0258
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 94 TS dt 0.0286725 time 10.0457
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 95 TS dt 0.0273278 time 10.0743
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 96 TS dt 0.0318377 time 10.1017
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 97 TS dt 0.0324318 time 10.1335
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 98 TS dt 0.0357818 time 10.1659
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 99 TS dt 0.037666 time 10.2017
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 100 TS dt 0.0407875 time 10.2394
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 101 TS dt 0.0432703 time 10.2802
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 102 TS dt 0.0460531 time 10.3235
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 103 TS dt 0.0482253 time 10.3695
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 104 TS dt 0.050102 time 10.4177
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 105 TS dt 0.0514227 time 10.4678
2023-04-04 10:06:28 [INFO] idaes.solve.petsc-dae: 106 TS dt 0.0524752 time 10.5193
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 107 TS dt 0.0533243 time 10.5717
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 108 TS dt 0.0541777 time 10.6251
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 109 TS dt 0.0551154 time 10.6792
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 110 TS dt 0.0562422 time 10.7343
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 111 TS dt 0.0576104 time 10.7906
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 112 TS dt 0.059284 time 10.8482
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 113 TS dt 0.0613178 time 10.9075
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 114 TS dt 0.0637843 time 10.9688
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 115 TS dt 0.0667724 time 11.0326
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 116 TS dt 0.0704035 time 11.0994
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 117 TS dt 0.0748425 time 11.1698
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 118 TS dt 0.080318 time 11.2446
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 119 TS dt 0.0871428 time 11.3249
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 120 TS dt 0.0957229 time 11.4121
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 121 TS dt 0.106495 time 11.5078
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 122 TS dt 0.119592 time 11.6143
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 123 TS dt 0.13393 time 11.7339
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 124 TS dt 0.146564 time 11.8678
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 125 TS dt 0.201237 time 11.9438
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 126 TS dt 0.207548 time 11.9717
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 127 TS dt 0.155914 time 11.9953
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 128 TS dt 0.0342507 time 12.0002
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 129 TS dt 0.00349675 time 12.0026
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 130 TS dt 0.0276671 time 12.0061
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 131 TS dt 0.0239069 time 12.0299
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 132 TS dt 0.0330047 time 12.0538
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 133 TS dt 0.0325494 time 12.0868
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 134 TS dt 0.0372622 time 12.1194
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 135 TS dt 0.0382344 time 12.1566
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 136 TS dt 0.0416316 time 12.1949
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 137 TS dt 0.0434266 time 12.2365
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 138 TS dt 0.0461574 time 12.2799
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 139 TS dt 0.0480205 time 12.3261
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 140 TS dt 0.0501026 time 12.3741
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 141 TS dt 0.0516944 time 12.4242
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 142 TS dt 0.0533565 time 12.4759
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 143 TS dt 0.0548876 time 12.5293
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 144 TS dt 0.0566061 time 12.5842
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 145 TS dt 0.0584937 time 12.6408
2023-04-04 10:06:29 [INFO] idaes.solve.petsc-dae: 146 TS dt 0.0607438 time 12.6993
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: 147 TS dt 0.0634157 time 12.76
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: 148 TS dt 0.0666756 time 12.8234
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: 149 TS dt 0.0706653 time 12.8901
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: 150 TS dt 0.0756211 time 12.9608
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: 151 TS dt 0.0818465 time 13.0364
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: 152 TS dt 0.089806 time 13.1182
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: 153 TS dt 0.100184 time 13.208
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: 154 TS dt 0.114029 time 13.3082
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: 155 TS dt 0.132866 time 13.4222
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: 156 TS dt 0.158521 time 13.5551
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: 157 TS dt 0.191605 time 13.7136
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: 158 TS dt 0.229016 time 13.9052
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: 159 TS dt 0.26931 time 14.1342
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: 160 TS dt 0.321688 time 14.4036
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: 161 TS dt 0.404501 time 14.7252
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: 162 TS dt 0.55666 time 15.1297
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: 163 TS dt 0.885012 time 15.6864
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: 164 TS dt 1.78043 time 16.5714
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: 165 TS dt 2.82408 time 18.3518
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: 166 TS dt 2.82408 time 21.1759
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: 167 TS dt 28.2408 time 24.
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: TSConvergedReason = TS_CONVERGED_TIME
2023-04-04 10:06:30 [INFO] idaes.solve.petsc-dae: TS_CONVERGED_TIME
a = plt.plot(
tj.time, tj.get_vec(m.fs.valve_1.control_volume.properties_in[24].pressure)
)
a = plt.ylabel("inlet pressure (Pa)")
a = plt.xlabel("time (s)")
a = plt.plot(tj.time, tj.get_vec(m.fs.valve_1.valve_opening[24]))
a = plt.ylabel("valve 1 fraction open")
a = plt.xlabel("time (s)")
a = plt.plot(tj.time, tj.get_vec(m.fs.tank.control_volume.properties_out[24].pressure))
a = plt.ylabel("tank pressure (Pa)")
a = plt.xlabel("time (s)")
Model a ramp in inlet pressure (again)#
Here we repeat the ramp from the previous simulation in a different way. In this case we do the integration in three parts. 1) Constant pressure at 500 kPa to 10 s 2) ramp from 500 to 600 kPa from 10 to 12 s. 3) Constant pressure at 600 kPa from 12 to 24 s.
# Create a new copy of the model that runs to 24 seconds, and add a constraint.
m = pid.create_model(
time_set=[0, 10, 12, 24],
nfe=3,
calc_integ=True,
)
# time_var will be an explicit time variable we can use in constraints.
m.fs.time_var = pyo.Var(m.fs.time)
# We'll add a constraint to calculate the inlet pressure from 10 to 12s. The rest of the
# time pressure will be fixed. For the time section from 10 to 12s, the constraints are
# defined by time 12; this means the pressure at time 12 should be unfixed and the
# pressure constraint should be active. At all other times, pressure should be fixed and
# the pressure constraint should be deactivated.
m.fs.valve_1.control_volume.properties_in[0].pressure.fix(500000)
m.fs.valve_1.control_volume.properties_in[10].pressure.fix(500000)
m.fs.valve_1.control_volume.properties_in[12].pressure.set_value(600000)
m.fs.valve_1.control_volume.properties_in[12].pressure.unfix()
m.fs.valve_1.control_volume.properties_in[24].pressure.fix(600000)
@m.fs.Constraint(m.fs.time)
def inlet_pressure_eqn(b, t):
return (
b.valve_1.control_volume.properties_in[t].pressure
== 50000 * (b.time_var[t] - 10) + 500000
)
m.fs.inlet_pressure_eqn.deactivate()
m.fs.inlet_pressure_eqn[12].activate()
2023-04-04 10:06:31 [INFO] idaes.init.fs.valve_1: Initialization Complete: optimal - Optimal Solution Found
2023-04-04 10:06:31 [INFO] idaes.init.fs.tank.control_volume: Initialization Complete
2023-04-04 10:06:31 [INFO] idaes.init.fs.tank: Initialization Complete: optimal - Optimal Solution Found
2023-04-04 10:06:31 [INFO] idaes.init.fs.valve_2: Initialization Complete: optimal - Optimal Solution Found
# Solve the new problem. Notice the argument specifying the explicit time variable.
result = petsc.petsc_dae_by_time_element(
m,
time=m.fs.time,
timevar=m.fs.time_var,
ts_options={
"--ts_type": "beuler",
"--ts_dt": 0.1,
"--ts_monitor": "", # set initial step to 0.1
"--ts_save_trajectory": 1,
},
)
tj = result.trajectory # trajectroy data
res = result.results # solver status list
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Called fg_read, err: 0 (0 is good)
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: ---------------------------------------------------
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: DAE: 0
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Reading nl file: /var/folders/xf/4r1nvwm50_d1069gf048n6p80000gn/T/tmpqdp2u_bf.pyomo.nl
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of constraints: 28
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of nonlinear constraints: 14
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of linear constraints: 14
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of inequalities: 0
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of variables: 28
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of integers: 0
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of binary: 0
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of objectives: 0 (Ignoring)
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of non-zeros in Jacobian: 83
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of degrees of freedom: 0
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: ---------------------------------------------------
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: 0 SNES Function norm 5.783088779321e+05
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: 1 SNES Function norm 4.315325974705e+05
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: 2 SNES Function norm 7.639793381288e+04
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: 3 SNES Function norm 5.928557930246e+03
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: 4 SNES Function norm 5.008361736228e+01
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: 5 SNES Function norm 3.698195211736e-03
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: 6 SNES Function norm 3.726165878373e-09
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: SNESConvergedReason = SNES_CONVERGED_FNORM_RELATIVE, in 6 iterations
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: SNES_CONVERGED_FNORM_RELATIVE
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: WARNING: model contains export suffix 'dae_suffix' that contains 1 component
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: keys that are not exported as part of the NL file. Skipping.
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Called fg_read, err: 0 (0 is good)
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: ---------------------------------------------------
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: DAE: 1
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Reading nl file: /var/folders/xf/4r1nvwm50_d1069gf048n6p80000gn/T/tmpy65slwrz.pyomo.nl
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of constraints: 29
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of nonlinear constraints: 15
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of linear constraints: 14
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of inequalities: 0
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of variables: 34
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of integers: 0
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of binary: 0
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of objectives: 0 (Ignoring)
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of non-zeros in Jacobian: 91
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Explicit time variable: 0
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of derivatives: 5
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of differential vars: 5
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of algebraic vars: 24
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of state vars: 29
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: Number of degrees of freedom: 0
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: ---------------------------------------------------
2023-04-04 10:06:31 [INFO] idaes.solve.petsc-dae: 0 TS dt 0.1 time 0.
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 1 TS dt 0.025 time 0.025
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 2 TS dt 0.0154252 time 0.0381739
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 3 TS dt 0.0133373 time 0.0510085
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 4 TS dt 0.0136013 time 0.0643458
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 5 TS dt 0.0141735 time 0.0779471
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 6 TS dt 0.0146392 time 0.0921205
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 7 TS dt 0.0152517 time 0.10676
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 8 TS dt 0.0158389 time 0.122011
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 9 TS dt 0.0165162 time 0.13785
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 10 TS dt 0.0172093 time 0.154367
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 11 TS dt 0.0179712 time 0.171576
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 12 TS dt 0.0187679 time 0.189547
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 13 TS dt 0.0196222 time 0.208315
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 14 TS dt 0.020514 time 0.227937
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 15 TS dt 0.0214472 time 0.248451
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 16 TS dt 0.022401 time 0.269898
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 17 TS dt 0.0233619 time 0.292299
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 18 TS dt 0.0243005 time 0.315661
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 19 TS dt 0.0251894 time 0.339962
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 20 TS dt 0.0259944 time 0.365151
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 21 TS dt 0.0266898 time 0.391146
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 22 TS dt 0.0272563 time 0.417835
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 23 TS dt 0.0276902 time 0.445092
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 24 TS dt 0.0279997 time 0.472782
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 25 TS dt 0.0282038 time 0.500782
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 26 TS dt 0.028326 time 0.528985
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 27 TS dt 0.0283913 time 0.557311
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 28 TS dt 0.0284218 time 0.585703
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 29 TS dt 0.0284362 time 0.614124
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 30 TS dt 0.0284488 time 0.642561
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 31 TS dt 0.0284703 time 0.671009
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 32 TS dt 0.0285087 time 0.69948
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 33 TS dt 0.0285693 time 0.727988
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 34 TS dt 0.0286562 time 0.756558
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 35 TS dt 0.0287722 time 0.785214
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 36 TS dt 0.0289195 time 0.813986
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 37 TS dt 0.0291001 time 0.842906
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 38 TS dt 0.0293154 time 0.872006
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 39 TS dt 0.0295672 time 0.901321
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 40 TS dt 0.0298571 time 0.930888
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 41 TS dt 0.0301872 time 0.960745
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 42 TS dt 0.0305596 time 0.990933
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 43 TS dt 0.0309769 time 1.02149
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 44 TS dt 0.031442 time 1.05247
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 45 TS dt 0.0319585 time 1.08391
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 46 TS dt 0.0325305 time 1.11587
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 47 TS dt 0.0331626 time 1.1484
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 48 TS dt 0.0338606 time 1.18156
2023-04-04 10:06:33 [INFO] idaes.solve.petsc-dae: 49 TS dt 0.0346311 time 1.21542
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 50 TS dt 0.0354817 time 1.25005
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 51 TS dt 0.0364218 time 1.28554
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 52 TS dt 0.0374622 time 1.32196
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 53 TS dt 0.0386159 time 1.35942
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 54 TS dt 0.0398987 time 1.39804
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 55 TS dt 0.0413295 time 1.43793
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 56 TS dt 0.0429313 time 1.47926
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 57 TS dt 0.0447325 time 1.5222
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 58 TS dt 0.0467682 time 1.56693
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 59 TS dt 0.0490823 time 1.6137
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 60 TS dt 0.0517305 time 1.66278
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 61 TS dt 0.0547839 time 1.71451
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 62 TS dt 0.0583343 time 1.76929
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 63 TS dt 0.0625012 time 1.82763
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 64 TS dt 0.0674414 time 1.89013
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 65 TS dt 0.0733598 time 1.95757
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 66 TS dt 0.0805186 time 2.03093
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 67 TS dt 0.0892348 time 2.11145
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 68 TS dt 0.0998323 time 2.20068
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 69 TS dt 0.112487 time 2.30052
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 70 TS dt 0.12691 time 2.413
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 71 TS dt 0.142117 time 2.53991
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 72 TS dt 0.157007 time 2.68203
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 73 TS dt 0.171623 time 2.83904
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 74 TS dt 0.187368 time 3.01066
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 75 TS dt 0.206382 time 3.19803
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 76 TS dt 0.231364 time 3.40441
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 77 TS dt 0.266076 time 3.63577
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 78 TS dt 0.316701 time 3.90185
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 79 TS dt 0.394851 time 4.21855
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 80 TS dt 0.52517 time 4.6134
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 81 TS dt 0.767754 time 5.13857
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 82 TS dt 1.29835 time 5.90633
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 83 TS dt 2.79532 time 7.20468
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 84 TS dt 8.85305 time 10.
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: TSConvergedReason = TS_CONVERGED_TIME
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: TS_CONVERGED_TIME
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: Called fg_read, err: 0 (0 is good)
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: ---------------------------------------------------
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: DAE: 1
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: Reading nl file: /var/folders/xf/4r1nvwm50_d1069gf048n6p80000gn/T/tmpt9ttg8ul.pyomo.nl
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: Number of constraints: 30
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: Number of nonlinear constraints: 16
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: Number of linear constraints: 14
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: Number of inequalities: 0
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: Number of variables: 36
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: Number of integers: 0
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: Number of binary: 0
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: Number of objectives: 0 (Ignoring)
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: Number of non-zeros in Jacobian: 98
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: Explicit time variable: 1
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: Number of derivatives: 5
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: Number of differential vars: 5
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: Number of algebraic vars: 25
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: Number of state vars: 30
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: Number of degrees of freedom: 0
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: ---------------------------------------------------
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 0 TS dt 0.1 time 10.
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 1 TS dt 0.1 time 10.1
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 2 TS dt 0.0448184 time 10.1371
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 3 TS dt 0.0362261 time 10.1719
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 4 TS dt 0.037926 time 10.2081
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 5 TS dt 0.040655 time 10.246
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 6 TS dt 0.0432601 time 10.2867
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 7 TS dt 0.0460301 time 10.3299
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 8 TS dt 0.0483791 time 10.376
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 9 TS dt 0.0503537 time 10.4243
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 10 TS dt 0.0518023 time 10.4747
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 11 TS dt 0.0529149 time 10.5265
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 12 TS dt 0.0538116 time 10.5794
2023-04-04 10:06:34 [INFO] idaes.solve.petsc-dae: 13 TS dt 0.0546803 time 10.6332
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 14 TS dt 0.0556299 time 10.6879
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 15 TS dt 0.056762 time 10.7435
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 16 TS dt 0.0581408 time 10.8003
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 17 TS dt 0.0598299 time 10.8584
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 18 TS dt 0.0618893 time 10.9183
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 19 TS dt 0.0643931 time 10.9802
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 20 TS dt 0.0674341 time 11.0445
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 21 TS dt 0.0711384 time 11.112
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 22 TS dt 0.0756776 time 11.1831
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 23 TS dt 0.0812903 time 11.2588
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 24 TS dt 0.0883011 time 11.3401
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 25 TS dt 0.09713 time 11.4284
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 26 TS dt 0.108211 time 11.5255
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 27 TS dt 0.121606 time 11.6337
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 28 TS dt 0.122333 time 11.7553
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 29 TS dt 0.122333 time 11.8777
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 30 TS dt 0.159258 time 12.
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: TSConvergedReason = TS_CONVERGED_TIME
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: TS_CONVERGED_TIME
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: WARNING: model contains export suffix 'dae_suffix' that contains 1 component
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: keys that are not exported as part of the NL file. Skipping.
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: Called fg_read, err: 0 (0 is good)
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: ---------------------------------------------------
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: DAE: 1
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: Reading nl file: /var/folders/xf/4r1nvwm50_d1069gf048n6p80000gn/T/tmpe3didsh0.pyomo.nl
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: Number of constraints: 29
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: Number of nonlinear constraints: 15
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: Number of linear constraints: 14
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: Number of inequalities: 0
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: Number of variables: 34
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: Number of integers: 0
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: Number of binary: 0
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: Number of objectives: 0 (Ignoring)
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: Number of non-zeros in Jacobian: 91
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: Explicit time variable: 0
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: Number of derivatives: 5
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: Number of differential vars: 5
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: Number of algebraic vars: 24
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: Number of state vars: 29
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: Number of degrees of freedom: 0
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: ---------------------------------------------------
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 0 TS dt 0.1 time 12.
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 1 TS dt 0.1 time 12.1
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 2 TS dt 0.0494004 time 12.1411
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 3 TS dt 0.0407055 time 12.1802
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 4 TS dt 0.0422725 time 12.2209
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 5 TS dt 0.0447524 time 12.2632
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 6 TS dt 0.0468318 time 12.3079
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 7 TS dt 0.0490217 time 12.3548
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 8 TS dt 0.0508279 time 12.4038
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 9 TS dt 0.0525655 time 12.4546
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 10 TS dt 0.0541373 time 12.5072
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 11 TS dt 0.055779 time 12.5613
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 12 TS dt 0.057531 time 12.6171
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 13 TS dt 0.0595583 time 12.6746
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 14 TS dt 0.061941 time 12.7342
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 15 TS dt 0.064821 time 12.7961
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 16 TS dt 0.0683274 time 12.8609
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 17 TS dt 0.0726534 time 12.9293
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 18 TS dt 0.0780452 time 13.0019
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 19 TS dt 0.0848677 time 13.08
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 20 TS dt 0.093653 time 13.1648
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 21 TS dt 0.105212 time 13.2585
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 22 TS dt 0.120767 time 13.3637
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 23 TS dt 0.142036 time 13.4845
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 24 TS dt 0.170717 time 13.6265
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 25 TS dt 0.206234 time 13.7972
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 26 TS dt 0.244735 time 14.0034
2023-04-04 10:06:35 [INFO] idaes.solve.petsc-dae: 27 TS dt 0.288411 time 14.2482
2023-04-04 10:06:36 [INFO] idaes.solve.petsc-dae: 28 TS dt 0.350093 time 14.5366
2023-04-04 10:06:36 [INFO] idaes.solve.petsc-dae: 29 TS dt 0.453668 time 14.8867
2023-04-04 10:06:36 [INFO] idaes.solve.petsc-dae: 30 TS dt 0.655244 time 15.3404
2023-04-04 10:06:36 [INFO] idaes.solve.petsc-dae: 31 TS dt 1.1261 time 15.9956
2023-04-04 10:06:36 [INFO] idaes.solve.petsc-dae: 32 TS dt 2.56901 time 17.1217
2023-04-04 10:06:36 [INFO] idaes.solve.petsc-dae: 33 TS dt 4.30929 time 19.6907
2023-04-04 10:06:36 [INFO] idaes.solve.petsc-dae: 34 TS dt 26.3625 time 24.
2023-04-04 10:06:36 [INFO] idaes.solve.petsc-dae: TSConvergedReason = TS_CONVERGED_TIME
2023-04-04 10:06:36 [INFO] idaes.solve.petsc-dae: TS_CONVERGED_TIME
a = plt.plot(
tj.time, tj.get_vec(m.fs.valve_1.control_volume.properties_in[24].pressure)
)
a = plt.ylabel("inlet pressure (Pa)")
a = plt.xlabel("time (s)")
a = plt.plot(tj.time, tj.get_vec(m.fs.valve_1.valve_opening[24]))
a = plt.ylabel("valve 1 fraction open")
a = plt.xlabel("time (s)")
a = plt.plot(tj.time, tj.get_vec(m.fs.tank.control_volume.properties_out[24].pressure))
a = plt.ylabel("tank pressure (Pa)")
a = plt.xlabel("time (s)")
